Household Type Fuse Links for Domestic and Single-Phase Electrical Protection
Household Type Fuse Links are designed to provide reliable overcurrent and short-circuit protection for domestic electrical systems, consumer units, UK plug tops, single-phase installations, and selected telecom or household-related applications. These fuse links help protect cables, appliances, consumer units, plugs, and electrical equipment by safely interrupting excessive current during fault conditions.
For residential and light commercial environments, fuse selection must be accurate, safe, and compliant with recognised standards. Household fuse links are commonly used in consumer units, distribution boards, plug tops, extension leads, domestic appliances, office equipment, and single-phase installations where dependable circuit protection is required.
The Lawson Household Type Fuse Links range includes Type L Consumer Unit Fuse Links, Type PL Plug Top Fuse Links, and Type PO British Telecom Pattern Fuse Links. The category covers products designed to standards including IEC 60269-3, BS 88-3, BS 1361, BS 1362, and BT Specification PT1360, depending on the fuse type.
What Are Household Type Fuse Links?
Household Type Fuse Links are low-voltage fuse links used to protect domestic and single-phase electrical circuits from overloads and short circuits. They operate by melting the internal fuse element when current exceeds a safe limit, disconnecting the circuit before damage occurs.
Unlike industrial fuse links, household fuse links are designed for residential, consumer, and light commercial applications. They are compact, easy to replace, and available in ratings suitable for common household circuits and plug-connected appliances.
These fuse links are used by electricians, electrical wholesalers, domestic installation contractors, maintenance teams, appliance service providers, facilities managers, and distributors supplying household electrical protection products.
Types of Household Fuse Links

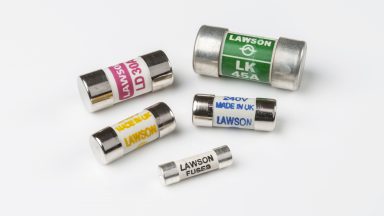

Type L Consumer Unit Fuse Links
Type L Consumer Unit Fuse Links are designed for household consumer units and other single-phase installations. Lawson Type L Fuse Links are suitable for fault levels up to 16.5kA and can be fitted into Pullcap Fuse Holders or other suitable fuse holders. They are manufactured to IEC 60269-3, BS 88-3, and BS 1361 requirements.
Common Terms: Consumer Unit Fuse Links, BS1361 Fuse, Domestic Consumer Unit Fuse, Household Consumer Unit Fuse, Type L Fuse Links.
Applications:
- Household consumer units
- Domestic distribution boards
- Single-phase installations
- Light commercial circuits
- Replacement fusing in existing BS1361 installations
- Pullcap fuse holder applications

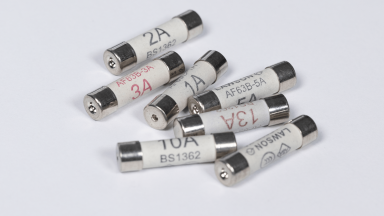

Type PL Plug Top Fuse Links
Type PL Plug Top Fuse Links are designed primarily for UK domestic plugs conforming to BS 1363. These BS1362 fuse links are available from 1A to 13A and are suitable for domestic plugs, appliances, extension leads, adaptor plugs, and appropriate single-phase installations with fault levels up to 6kA.
Common Terms: Plug Top Fuse Links, BS1362 Fuse, 13A Plug Fuse, UK Plug Fuse, Domestic Plug Fuse, Type PL Fuse Links.
Applications:
- UK 3-pin plugs
- Household appliances
- Extension leads
- Adaptor plugs
- Office electrical equipment
- Replacement plug fuse applications

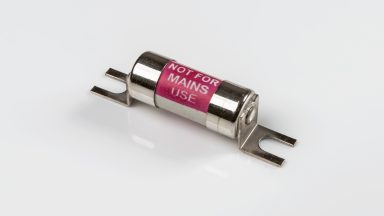

Type PO British Telecom Pattern Fuse Links
Type PO Fuse Links are listed under the household fuse links category for System X installations to BT Specification PT1360. They are specialist DC fuse links designed for telecommunications power distribution and British Telecom pattern applications.
Common Terms: British Telecom Fuse, Telecom Fuse Link, DC Fuse Link, BT System X Fuse, Type PO Fuse Links.
Applications:
- British Telecom System X installations
- Telecom power distribution circuits
- Exchange power equipment
- Telecommunications infrastructure
- Specialist DC protection applications
Key Features of Household Type Fuse Links
Designed for Domestic Electrical Protection
Household Type Fuse Links are developed for domestic, consumer, and single-phase electrical systems. They help protect wiring, plug-connected appliances, consumer units, and electrical accessories from overload and short-circuit conditions, supporting safer everyday electrical operation.
Consumer Unit Compatibility
Type L Consumer Unit Fuse Links are suitable for household consumer units and other single-phase installations. They can be used with Pullcap Fuse Holders or other suitable fuse holders, making them practical for replacement and maintenance applications.
Plug Top Fuse Protection
Type PL Plug Top Fuse Links are designed for UK domestic plugs to BS 1363. They protect appliance flexible cables and connected equipment from electrical faults, making them essential for safe plug-connected domestic and office appliances.
Standards-Compliant Construction
Household fuse links are manufactured to relevant standards such as IEC 60269-3, BS 88-3, BS 1361, BS 1362, and BT Specification PT1360 depending on the product type. Standards compliance supports safe selection and dependable performance.
Wide Rating Availability
The household fuse range includes consumer unit fuse links, plug top fuse links, and telecom pattern fuse links. Type PL plug fuses are available from 1A to 13A, while Type L consumer unit fuses cover recognised BS1361 and BS88-certified ratings.
High Fault Protection Capability
Type L Consumer Unit Fuse Links are suitable for fault levels up to 16.5kA, while Type PL Plug Top Fuse Links are suitable for appropriate single-phase installations with fault levels up to 6kA.
Colour-Coded Identification
Selected household fuse links include colour coding for easier rating identification. Type PL plug fuses include 3A red and 13A brown colour coding, while other ratings are black, helping users and electricians identify ratings quickly.
Compact and Easy to Replace
Household fuse links are compact and designed for convenient replacement inside suitable fuse holders, consumer units, and plug tops. Their standardised formats help electricians, maintenance teams, and users complete replacements safely and efficiently.
Applications of Household Fuse Links
Household Consumer Units
Consumer Unit Fuse Links protect domestic circuits inside household fuse boards and distribution units. They help isolate overloads and short circuits before damage occurs to wiring, accessories, or connected equipment.
Domestic Plug Tops
Plug Top Fuse Links are installed inside UK 3-pin plugs to protect appliance cables and connected devices. They are commonly used in everyday household and office appliances requiring BS1362 fuse protection.
Single-Phase Installations
Household Type Fuse Links are suitable for selected single-phase installations where the voltage, fault level, and fuse holder arrangement match the product specification. They are often used in residential and light commercial electrical systems.
Household Appliances
Plug fuses protect appliances such as kettles, toasters, irons, washing machines, lamps, televisions, computers, chargers, and other domestic equipment. Correct fuse rating selection helps protect appliance cables during fault conditions.
Extension Leads and Adaptors
BS1362 Plug Top Fuse Links are commonly used in extension leads and adaptor plugs. These applications require compact fuse protection to help protect flexible cables and connected loads.
Light Commercial Premises
Small offices, shops, workshops, and similar premises may use household type fuse links in suitable single-phase circuits. These products are useful for replacement fusing, maintenance, and low-voltage circuit protection.
Telecom and Specialist Applications
Type PO Fuse Links are used for British Telecom System X and telecom-related DC applications. These specialist fuse links support reliable protection in selected telecommunications power distribution systems.
How to Choose the Right Household Fuse Link
Identify the Application
First determine whether the fuse is required for a consumer unit, plug top, single-phase installation, extension lead, appliance, or telecom application. Each household fuse type is designed for a specific use case.
Match the Correct Standard
Use BS1361 or IEC 60269-3 / BS 88-3 fuse links for suitable consumer unit applications. Use BS1362 plug top fuses for UK domestic plugs. For telecom applications, check the BT Specification PT1360 requirement.
Select the Correct Current Rating
The fuse rating must match the circuit or appliance requirement. For plug top fuses, lower-rated appliances often use 3A fuses, while higher-power appliances commonly use 13A fuses. Always follow manufacturer guidance.
Check Voltage and Fault Level
The selected fuse must be suitable for the system voltage and prospective fault current. Type L fuse links are used in installations up to 16.5kA fault level, while Type PL plug fuses are suitable up to 6kA in appropriate installations.
Confirm Physical Compatibility
The fuse link must fit the installed plug, consumer unit fuse holder, Pullcap Fuse Holder, or approved fuse carrier. Incorrect dimensions or contact type may cause poor connection, overheating, or unsafe operation.
Use Like-for-Like Replacement
When replacing an existing fuse link, use the same fuse type, rating, and standard unless a qualified electrician confirms an alternative. Using an incorrect fuse rating can reduce protection and create safety risks.
Why Choose Us as Your Household Fuse Manufacturer?
Specialist Household Fuse Manufacturer
As a Household Fuse Manufacturer, we provide fuse links designed for domestic, consumer unit, plug top, single-phase, and specialist telecom applications. Our products support reliable circuit protection for electricians, distributors, wholesalers, and maintenance teams.
Trusted Household Fuse Supplier
We supply Household Type Fuse Links to electrical wholesalers, contractors, distributors, facilities teams, utility partners, and maintenance companies. Our product range supports both routine replacement demand and bulk procurement requirements.
Complete Household Fuse Range
Our household fuse range includes Consumer Unit Fuse Links, Plug Top Fuse Links, BS1361 Fuses, BS1362 Fuses, 13A Plug Fuses, Type L Fuse Links, Type PL Fuse Links, and specialist Type PO Fuse Links.
Standards-Based Product Quality
Our household fuse links are manufactured to recognised standards for dependable performance and safe application. This makes them suitable for domestic electrical protection, replacement fusing, and selected light commercial installations.
Support for Bulk Orders
We support bulk supply requirements for distributors, wholesalers, contractors, facilities maintenance companies, and electrical service providers requiring consistent availability of household fuse links and plug top fuse products.
Technical Selection Support
Our team can help customers select the correct household fuse link based on application, rating, voltage, fault level, fuse holder compatibility, and required standard compliance.
Household Fuse Manufacturer & Supplier
Choosing the right Household Fuse Manufacturer and Supplier is important for product safety, compliance, and reliable availability. Household electrical protection products are used in everyday environments where incorrect fuse selection can affect appliance safety, wiring protection, and installation reliability.
A dependable supplier should offer standards-compliant products, clear technical specifications, consistent stock availability, and support for electricians, wholesalers, contractors, distributors, and maintenance teams.
Whether you need Consumer Unit Fuse Links, BS1361 Fuses, BS1362 Plug Top Fuses, 13A Plug Fuses, Domestic Fuse Links, or specialist Type PO Fuse Links, our product range supports reliable household and single-phase electrical protection.
