PV Fuse Links for Solar PV Applications
PV Fuse Links for Reliable Solar PV System Protection
As solar energy installations continue to grow worldwide, reliable circuit protection has become essential for ensuring the safety, efficiency, and longevity of photovoltaic (PV) systems. PV Fuse Links are specifically designed to protect solar PV strings, combiner boxes, inverters, battery energy storage systems, and associated DC circuits from overcurrents and fault conditions.
Unlike standard AC fuses, PV fuse links are engineered to safely interrupt the unique low fault currents and DC arc characteristics found in photovoltaic installations. Designed in accordance with IEC 60269-6 standards, these specialised gPV fuse links provide dependable protection for residential, commercial, industrial, and utility-scale solar projects. PV fuse links are commonly available in 1000V DC and 1500V DC configurations for modern solar power systems.
What Are PV Fuse Links?
PV Fuse Links (Photovoltaic Fuse Links) are specialised DC fuses designed to protect photovoltaic string circuits from reverse currents, overloads, and short-circuit faults. They are specifically developed for solar applications where conventional AC protection devices may not provide adequate fault interruption capability.
PV fuse links are typically classified as gPV fuses, providing full-range protection against both overload and short-circuit conditions within solar installations. Their design enables them to safely interrupt low overcurrents associated with faulted photovoltaic string arrays.
Key Benefits
- Designed specifically for photovoltaic systems
- Reliable DC fault interruption
- Protection against reverse currents
- High breaking capacity
- Compliance with IEC 60269-6
- Suitable for 1000V DC and 1500V DC systems
- Enhanced system safety and reliability
Types of PV Fuse Links

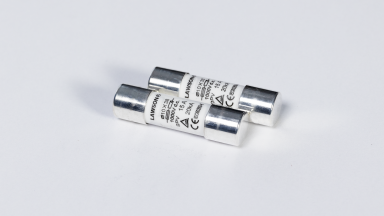

1000V DC PV Fuse Links
Designed for standard photovoltaic systems operating up to 1000V DC, these fuse links are commonly used in residential, commercial, and industrial solar installations.
Applications
- Rooftop solar systems
- Solar combiner boxes
- String inverters
- Commercial PV installations
Features
- 10×38 mm format
- gPV utilisation category
- High DC breaking capacity
- IEC 60269-6 compliant

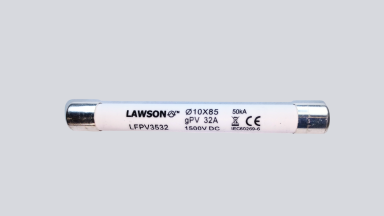

1500V DC PV Fuse Links
1500V DC PV fuse links are designed for modern utility-scale solar projects where higher system voltages improve efficiency and reduce installation costs.
Applications
- Utility-scale solar farms
- Large commercial installations
- Ground-mounted solar arrays
- Battery energy storage systems
Benefits
- Higher voltage capability
- Reduced power losses
- Improved system efficiency
- Enhanced protection performance
Key Features of PV Fuse Links
Specifically Designed for Solar PV Systems
PV fuse links are engineered to address the unique electrical characteristics of photovoltaic installations. Unlike standard industrial fuses, they are capable of interrupting low fault currents generated by solar arrays while providing reliable protection against reverse current and multi-string fault conditions.
IEC 60269-6 Compliance
Manufactured in accordance with IEC 60269-6 requirements, PV fuse links provide standardised performance, safety, and reliability. Compliance ensures compatibility with globally recognised solar protection practices and supports the safe operation of photovoltaic systems across diverse applications.
High DC Breaking Capacity
PV fuse links are designed to safely interrupt fault currents within DC circuits where arc suppression is more challenging than AC systems. Their high breaking capacity helps protect solar modules, inverters, combiner boxes, and associated electrical infrastructure.
Protection Against Reverse Currents
In multi-string solar installations, reverse current faults can occur when current flows from healthy strings into a faulted string. PV fuse links are specifically designed to detect and interrupt these conditions before equipment damage occurs.
Wide Voltage and Current Ratings
Available in multiple voltage classes and current ratings, PV fuse links support a broad range of photovoltaic system designs. This flexibility enables engineers and solar installers to select protection solutions that match project-specific electrical requirements.
Long-Term Outdoor Reliability
Designed for solar applications, PV fuse links operate reliably across varying environmental conditions, including temperature fluctuations, humidity, and outdoor installation environments. Their robust construction supports long-term system performance and reduced maintenance requirements.
Applications of PV Fuse Links
Solar String Protection
PV fuse links provide dedicated protection for individual photovoltaic strings by interrupting fault currents before they can damage modules, cabling, or other system components. They are a critical safety component within solar combiner boxes and string circuits.
Solar Combiner Boxes
Combiner boxes utilise PV fuse links to protect multiple string inputs before connection to inverters. Proper string protection helps maintain system reliability and minimises the risk of fault propagation across the PV array.
Solar Inverter Protection
PV fuse links are commonly installed at inverter inputs to safeguard equipment against overcurrents and abnormal operating conditions. Effective inverter protection contributes to improved system uptime and reduced maintenance costs.
Utility-Scale Solar Farms
Large-scale solar power plants rely on PV fuse links for dependable string-level and array-level protection. Their high voltage capabilities make them suitable for modern utility-scale installations operating at 1000V DC and 1500V DC.
Battery Energy Storage Systems (BESS)
PV fuse links are increasingly used within energy storage systems to provide reliable DC circuit protection. They help protect battery strings, power conversion equipment, and associated infrastructure from damaging fault currents.
Commercial and Industrial Solar Installations
Commercial rooftops, manufacturing facilities, warehouses, and industrial energy projects utilise PV fuse links to ensure safe and reliable operation of solar generation systems.
How to Choose the Right PV Fuse Link
Verify System Voltage
The fuse voltage rating must match the PV system design. Common options include 1000V DC and 1500V DC fuse links depending on the application and array configuration.
Select the Correct Current Rating
Choose a fuse rating that accommodates normal operating current while providing effective protection against fault conditions. Proper sizing helps avoid nuisance operation and ensures reliable protection.
Confirm gPV Classification
Always select fuse links certified as gPV for photovoltaic applications. gPV fuses are specifically tested for solar system fault characteristics and provide full-range protection capabilities.
Evaluate Breaking Capacity Requirements
The fuse must be capable of safely interrupting the maximum fault current available within the PV installation. Adequate breaking capacity is essential for system safety and compliance.
Consider Installation Environment
Environmental factors such as temperature, humidity, and enclosure design should be considered during fuse selection to ensure reliable long-term performance.
Why Choose Us as Your PV Fuse Manufacturer?
Specialist PV Fuse Manufacturer
We manufacture high-performance PV fuse links specifically designed for photovoltaic protection applications. Our products support residential, commercial, industrial, and utility-scale solar projects requiring reliable DC circuit protection.
IEC-Compliant PV Fuse Solutions
Our PV fuse links are manufactured and tested in accordance with IEC 60269-1 and IEC 60269-6 standards, ensuring consistent quality, performance, and compliance with international solar industry requirements.
Comprehensive Product Range
We offer a complete portfolio of PV fuse links, including 1000V DC and 1500V DC solutions, helping customers meet the protection requirements of modern solar installations.
Reliable Global Supply
As a trusted PV fuse supplier, we support OEMs, solar EPC contractors, distributors, inverter manufacturers, and renewable energy developers with dependable product availability and technical support.
Technical Application Expertise
Our team assists customers in selecting suitable PV fuse links based on voltage ratings, current requirements, system architecture, and project specifications to ensure optimal protection performance.
