230/240 & 400/415 Volt Compact Dimension Fuse-Holders to IEC 60269-2/BS 88-2 – Type LCF

230/240V & 400/415V Compact Dimension Clip Fit Fuse Holder – Type LCF

Product Introduction

The Lawson Type LCF is a high-quality Clip Fit Fuse Holder designed for use with compact dimension fuse-links E1/F1/NS/F2  conforming to IEC 60269-2 / BS 88-2. Engineered for reliability and ease of installation, this IEC 60269-2 Fuse Holder is the preferred choice for industrial and commercial electrical distribution applications across single-phase and three-phase systems.

Available in current ratings of 20A, 32A, and 63A, the Type LCF Clip Fit Fuse Holder delivers a secure, tool-free clip-fit connection that simplifies both installation and fuse replacement — reducing downtime and improving safety on site.

Key Features

• IEC 60269-2 / BS 88-2 compliant — meets international and British standards for low-voltage fuse holders
• Clip Fit design — fast, secure installation without the need for additional tools
• Four wiring configurations available: Double Front Connected (FC/FC), Front/Busbar Connected (FC/BBC), Front/Back Connected (FC/BC), and Double Back Connected (BC/BC)
• Integral DIN-Rail Adaptor — all bases include built-in DIN-rail mounting for panel installation
• Available in multiple colours — standard Black (BK), White (WH), and Green (GN for 20A)
• Spare carriers and cable shrouds available for easy maintenance

Applications

The Type LCF IEC 60269-2 Fuse Holder is ideal for:

• Industrial control panels and distribution boards
• Commercial building services installations
• Single-phase 230/240V and three-phase 400/415V circuits
• Switchgear and metring enclosures

Why Choose Lawson’s Clip Fit Fuse Holder?

Lawson Fuses has been a trusted name in electrical protection for decades. Our Clip Fit Fuse Holders are precision-engineered to work seamlessly with Lawson’s compact dimension fuse-links, ensuring a reliable and safe connection every time. With full compliance to IEC 60269-2 and BS 88-2 standards, you can be confident in the safety and performance of every installation.

Q1. What is a Clip Fit Fuse Holder?

A Clip Fit Fuse Holder is a fuse mounting device that uses a secure clip-fit mechanism to hold a fuse-link in place without the need for tools. The Lawson Type LCF is designed for compact dimension fuse-links size E1 ,F1 and F2  and offers fast, safe installation and replacement in electrical distribution systems.

Q2. Is the Type LCF Fuse Holder compliant with IEC 60269?

Yes. The Lawson Type LCF is fully compliant with IEC 60269-2 and BS 88-2 standards, making it suitable for use in both international and UK electrical installations where certified protection components are required.

Q3. What voltage and current ratings are available?

The Type LCF Clip Fit Fuse Holder is available in the following ratings:

• 20A at 240V (single-phase)
• 32A at 415V (three-phase)
• 63A at 415V (three-phase)

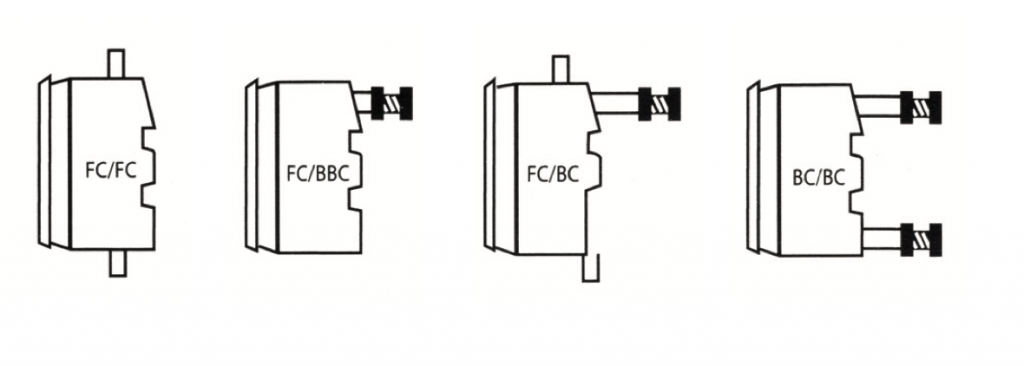

Q4. What wiring configurations does the Type LCF support?

The Type LCF IEC 60269-2 Fuse Holder is available in four wiring configurations:

• Double Front Connected (FC/FC)
• Front/Busbar Connected (FC/BBC)
• Front/Back Connected (FC/BC)
• Double Back Connected (BC/BC)

This flexibility makes it suitable for a wide range of panel layouts and installation requirements.

Q5. Can the Type LCF be mounted on a DIN rail?

Yes. All Type LCF Clip Fit Fuse Holder bases include an integral DIN-Rail Adaptor, allowing straightforward mounting onto standard DIN rails within control panels and distribution boards — no separate adaptor required.

Q6. What colours are available for the Type LCF Fuse Holder?

The standard colour is Black (BK). White (WH) is also available across the range, and Green (GN) is available for the 20A version — useful for neutral identification in wiring systems.

Q7. Which fuse-links are compatible with the Type LCF Clip Fit Fuse Holder?

The Type LCF is designed for use with Lawson’s compact dimension fuse-links:

• SS (E1) fuse-links for the 20A holder
• NS (F1) fuse-links for the 32A holder
• MES (F2) fuse-links for the 63A holder

These fuse-links conform to IEC 60269-2 / BS 88-2.

Q8. Are spare carriers and cable shrouds available?

Yes. Spare carriers and grey cable shrouds are available for all ratings (20A, 32A, and 63A), making it easy to maintain and service installations without replacing the entire fuse holder assembly.

Q9. Where is the Type LCF Clip Fit Fuse Holder typically used?

It is commonly used in:

• Industrial control panels and switchgear
• Commercial and residential distribution boards
• Building services and metring enclosures
• Single-phase and three-phase electrical circuits

Q10. How do I order or get more information about the Type LCF IEC 60269-2 Fuse Holder?

You can contact the Lawson Fuses sales team directly or reach out to one of their authorised sales partners for pricing, availability, and technical support. A full product information sheet is also available to download from the product page.

Q11. Is the  Type LCF IEC 60269-2 Fuse Holder Fire retardant ?

Yes, It is made of Nylon fire V0 grade materials to provide safety from fire hazards.
