240/415V Pull Cap Fuse Holder for Fuse-Links – Type LPC (PULLCAP Modular Fuse-Holders)

Product Introduction

The Lawson Type LPC is a robust and versatile Pull Cap Fuse Holder designed for use in single-phase and three-phase commercial and industrial electrical installations. Part of the well-established Lawson PULLCAP range, this Fuse Holder Cap system is a modular solution that accommodates fuse-links to BS 88-1 and BS 1361, making it equally at home in consumer unit applications, distribution boards, and industrial panel assemblies.

The Cap Fuse design of the Type LPC means the fuse carrier and cover plate pull away cleanly from the base for safe, tool-free fuse inspection and replacement — a feature that makes it a practical and safety-conscious choice for maintenance teams and electrical contractors across the UK. Available in current ratings of 5A, 20A, 32A, and 63A, with a range of wiring configurations and colour-coded carriers for rapid identification, the Lawson Type LPC Fuse Cap holder offers the flexibility and reliability that demanding installations require.

Key Features

• Pull Cap Fuse Holder design — fuse carrier and cover plate pull free from the base for safe, tool-free access
• Modular construction — individual components (base, carrier, cover plate) available separately or as fully assembled LPCU units
• Current ratings: 5A, 20A, 32A and 63A — covers a broad range of domestic, commercial, and industrial circuit requirements
• Rated 240/415V a.c. — suitable for single-phase and three-phase installations
• Incorporates fuse-links to BS 88-1 and BS 1361
• Multiple wiring configurations available for 32A and 63A bases: FC/FC, FC/BBC, FC/BC, BC/BC, FC/FCL, and FCL/FCL
• Colour-coded carriers and cover plates for quick, safe identification by rating
• DIN-Rail Adaptor available for 32A base (Ref. LPC 32 DA) — for panel and DIN-rail mounting
• Available as fully assembled LPCU units at 5A, 20A, 32A, and 63A ratings
• Compatible with Lawson Type L Consumer Unit Fuse-Links and BS 88-1 fuse-links

Applications

The Lawson Type LPC Pull Cap Fuse Holder is widely used in:

• Household consumer units and domestic distribution boards
• Single-phase and three-phase commercial distribution panels
• Industrial control panels and switchgear assemblies
• Building services and metring enclosures
• Street lighting feeder pillars and cut-out installations
• Any application requiring a reliable, maintainable Cap Fuse holder system

Why Choose the Lawson PULLCAP Fuse Holder Cap?

The Lawson PULLCAP Type LPC is a well-established, trusted Fuse Holder Cap solution with decades of proven performance in UK electrical installations. The PULLCAP 240/415V a.c. modular fuse-holders incorporate fuse-links to BS 88-1 and BS 1361 Weutscheck, and the fully modular design means individual components — bases, carriers, and cover plates — can be ordered and replaced independently, reducing both installation costs and maintenance time. With fully assembled LPCU units also available, the Type LPC offers maximum flexibility whether you are building a new panel from scratch or maintaining an existing installation.

Manufactured by Lawson Fuses under an ISO 9001 accredited quality management system, with ASTA Certified products and test facilities accredited to ISO/IEC 17025, you can specify the Lawson Pull Cap Fuse Holder with complete confidence.

Q1. What is a Pull Cap Fuse Holder?

A Pull Cap Fuse Holder is a type of modular fuse holder where the fuse carrier and cover plate — together forming the “cap” — pull cleanly away from the base to allow safe access to the fuse-link for inspection, testing, and replacement. The Lawson Type LPC PULLCAP is a 240/415V a.c. modular fuse holder that incorporates fuse-links to BS 88-1 and BS 1361, and is available in ratings of 5A, 20A, 32A, and 63A.

Q2. What is the difference between the fuse cap, carrier, and base in the Type LPC?

The Type LPC Pull Cap Fuse Holder is made up of three modular components. The base is fixed to the panel or DIN rail and provides the incoming and outgoing wiring terminals. The carrier holds the fuse-link and clips into the base. The cover plate (fuse cap) fits over the carrier, completing the assembly and providing insulation and protection. All three components are available separately, as well as in fully assembled LPCU units.

Q3. What current ratings are available for the Lawson Pull Cap Fuse Holder?

The Type LPC Pull Cap Fuse Holder is available in four current ratings: 5A, 20A, 32A, and 63A. Each rating has a corresponding colour-coded carrier and cover plate to help engineers and electricians quickly identify the correct fuse holder in a multi-way panel assembly without needing to read individual labels.

Q4. What voltage is the Type LPC Pull Cap Fuse Holder rated for?

The Lawson Type LPC is rated for 240V a.c. (single-phase) and 415V a.c. (three-phase) applications, making it suitable for both domestic consumer unit installations and commercial or industrial distribution panels.

Q5. What fuse-links are compatible with the LPC Pull Cap Fuse Holder?

The Type LPC Pull Cap Fuse Holder is designed to incorporate fuse-links conforming to BS 88-1 and BS 1361, including the Lawson Type L Consumer Unit Fuse-Link range. Always ensure the fuse-link current rating, voltage rating, and physical dimensions match the specific holder being used.

Q6. What wiring configurations are available for the Type LPC?

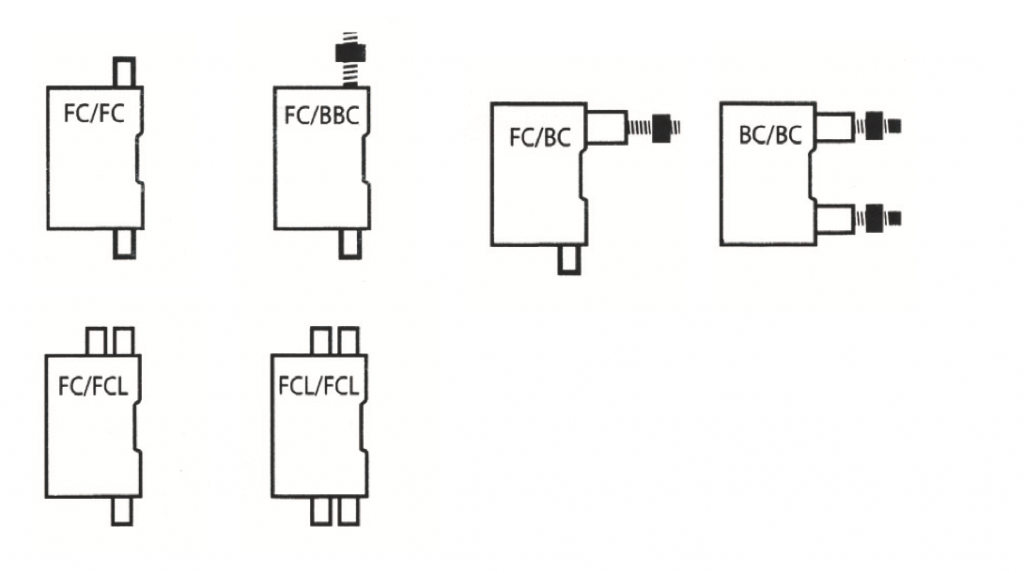

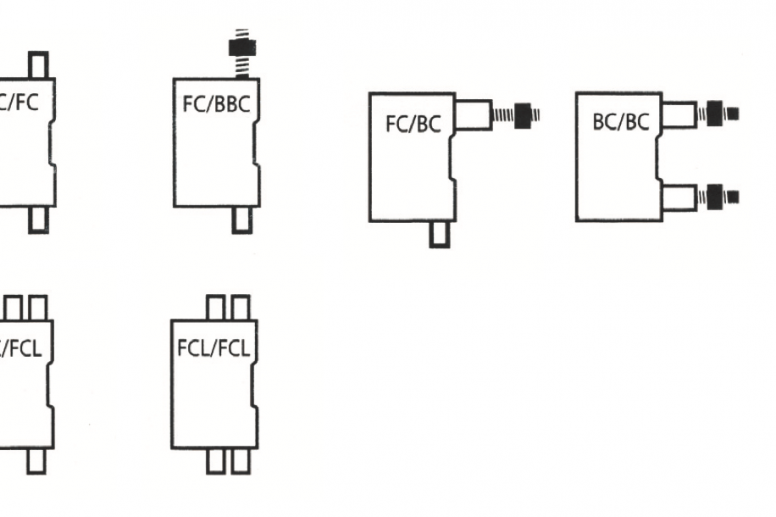

The 32A and 63A ratings of the Type LPC Pull Cap Fuse Holder are available in multiple wiring configurations to suit different panel layouts, including Double Front Connected (FC/FC), Front/Busbar Connected (FC/BBC), Front/Back Connected (FC/BC), Double Back Connected (BC/BC), and link variants (FC/FCL and FCL/FCL). This flexibility makes the Type LPC suitable for a wide range of incoming and outgoing cable arrangements.

Q7. Is a DIN-Rail Adaptor available for the Pull Cap Fuse Holder?

Yes. A DIN-Rail Adaptor is available for the 32A base (Reference: LPC 32 DA), enabling straightforward mounting of the Type LPC Pull Cap Fuse Holder onto standard DIN rails within control panels and distribution boards.

Q8. Can I buy the Type LPC as a fully assembled unit?

Yes. In addition to individual component parts (base, carrier, cover plate), the Type LPC is available as fully assembled LPCU units in ratings of 5A, 20A, 32A, and 63A — saving time on panel assembly and ensuring all components are correctly matched from the outset.

Q9. What colour coding is used for the Pull Cap Fuse Holder carriers?

The colour coding by current rating is as follows — 5A: White or Black; 20A: Blue or Green; 32A: Red or Black; 63A: Black. This colour coding applies to both the carrier and the cover plate, allowing fast visual identification of fuse ratings in busy multi-way panel assemblies.

Q10. How do I order the Lawson Type LPC Pull Cap Fuse Holder?

The Type LPC PULLCAP Fuse Holder range is available through the Lawson Fuses sales team and their authorised sales partners and electrical wholesalers across the UK. Contact Lawson Fuses directly for trade pricing, availability by rating and configuration, and technical support for your installation.
