Ultra-High-Speed Protection with Semiconductor Fuses – Characteristics and Working
As the name implies, semiconductor protection fuses are used to safeguard semiconductor devices from excess current during short circuits. These fuses are renowned for their rapid response, making them ideal for protecting highly sensitive semiconductor components. Due to their fast-acting nature, they are also referred to as rectifier protection or ultra-fast fuses. While they offer excellent short-circuit protection, semiconductor protection fuses do not provide safety against overloads. Their primary function is to respond swiftly to high current situations before they reach sensitive semiconductor devices. Overall, a semiconductor protection fuse is a vital circuit component that delivers outstanding short-circuit protection.
The operating principle of a semiconductor protection fuse is similar to that of a standard fuse. However, the use of a silver fuse element and an efficient design enables significantly faster operation. This is precisely why semiconductor fuses are used in rectifiers, inverters, diodes, thyristors (SCRs), IGBTs, MOSFETs, and renewable energy systems. In this blog, we will explore all the essential details about semiconductor fuses and examine their applications in depth.
Characteristics of a Semiconductor Protection Fuse
To ensure safe and effective operation, understanding the characteristics of semiconductors is crucial. Likewise, learning about the features of a semiconductor protection fuse will help you use it effectively. The key characteristics are outlined below:
Ultra-Quick Circuit Breaking
Semiconductor fuses are engineered to manage excess current during short circuits. They operate faster than HRC fuses or standard fuses, breaking the connection within milliseconds. As a result, they are used to protect sensitive semiconductors and in environments where rapid circuit interruption is essential.
Lower I²t Rating
The I²t rating of a fuse indicates how much energy it can withstand before breaking the circuit. Semiconductor fuses have a lower I²t rating, meaning they interrupt the circuit at a lower energy level to protect devices.

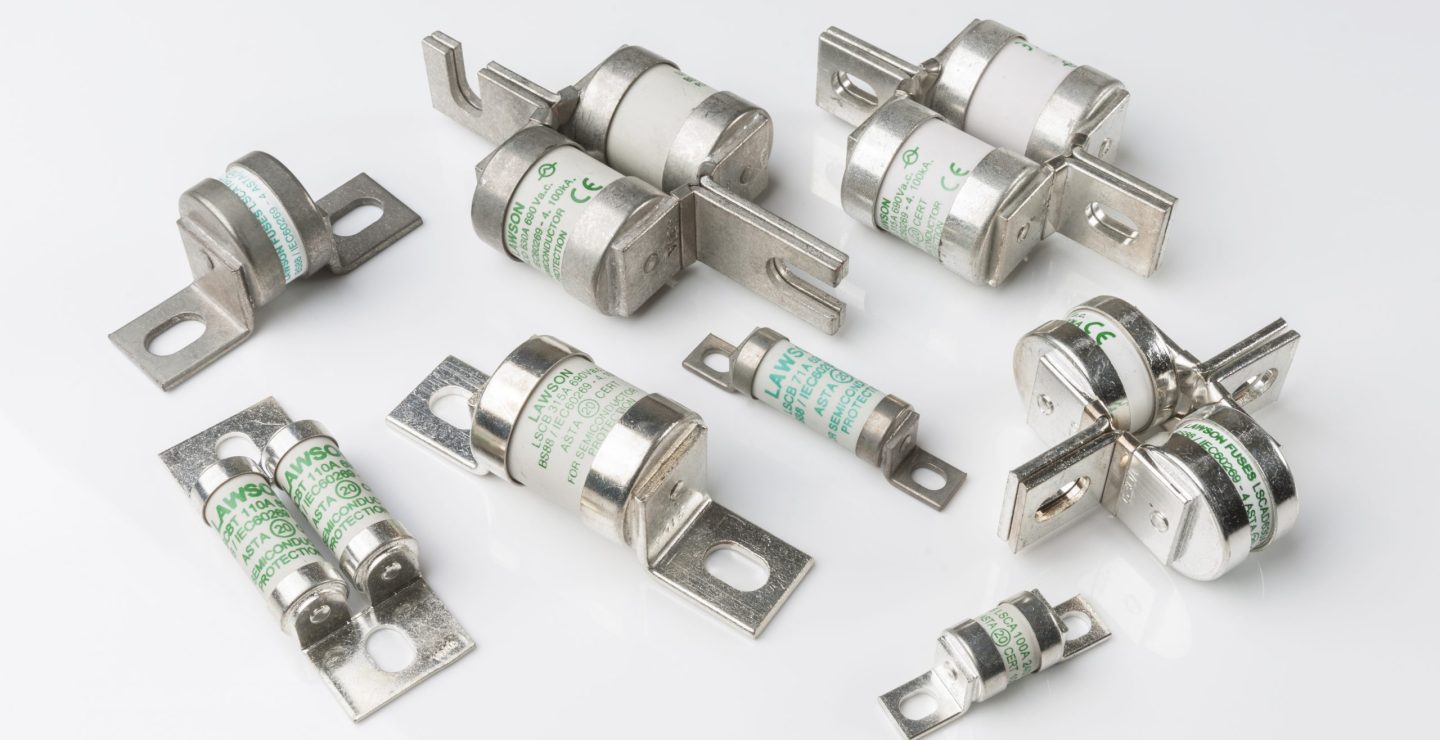

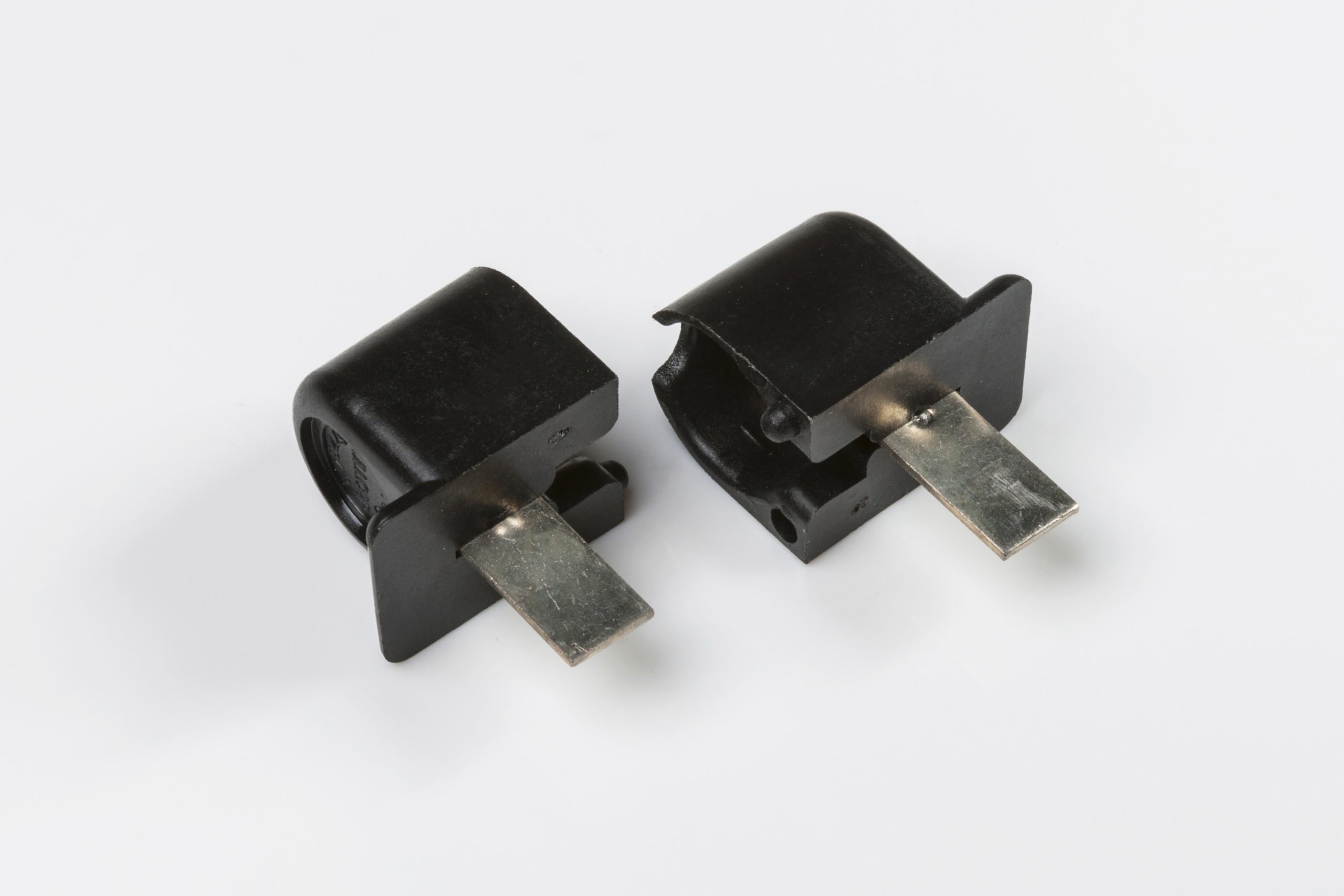

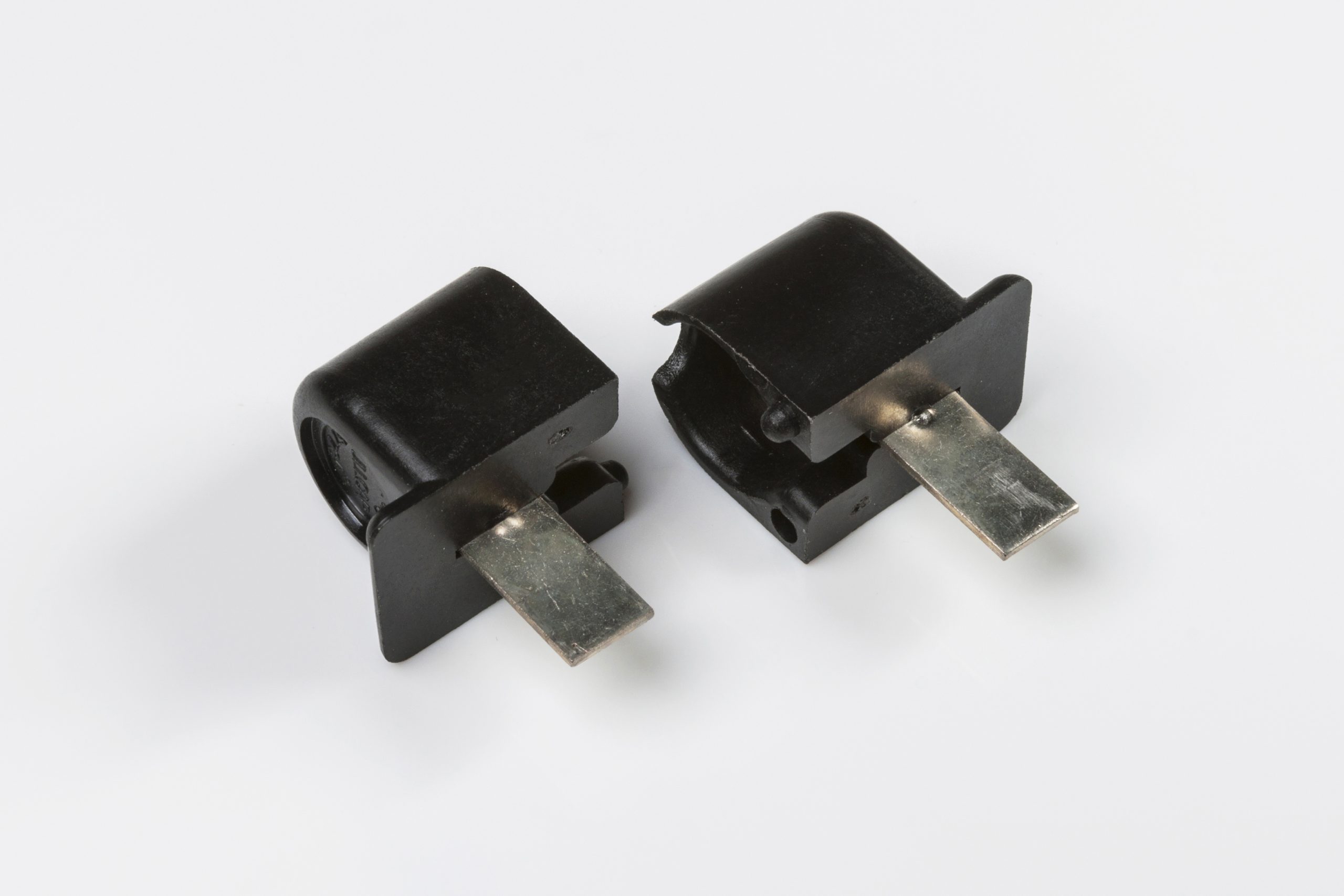

Special Construction and Design
These fuses are specially designed to enhance circuit-breaking speed. They feature a silver fuse element crafted from thin sheets with notches to reduce the cross-sectional area. The element is surrounded by sand, which manages the electrical arc. Additionally, the fuse endpoints come in various designs to fit easily into fuse carriers, allowing for versatile application.
Arc Quenching Capabilities
Arcs form when the fuse wire vaporises after melting, generating extreme heat that can cause explosions or fires. Like HRC fuses, semiconductor fuses use quartz or silica sand filler to surround the fuse element. This high-grade insulating material quenches the arc during short circuits.
Interrupt High Fault Currents
Thanks to their specialised design, semiconductor protection fuses can quickly interrupt high fault currents. The notched fuse element reduces the cross-sectional area, enabling fast response. These fuses are available in 240Vac, 690Vac, and 750Vdc ratings.
One-Time Use
Like all fuses, semiconductor fuses are single-use. Once the circuit is broken, the fuse element melts completely, rendering the fuse unusable. It must be replaced with a new one.
Working Principle of a Semiconductor Fuse and How It Differs from an HRC Fuse
The operation of a semiconductor protection fuse and fuse holder mirrors that of standard fuses. They act as sacrificial components, destroying themselves to break the circuit.
- Under normal conditions, the silver fuse element conducts electricity without interruption.
- When current exceeds a safe limit and threatens semiconductors or other devices, the fuse element melts.
- This melting is caused by the increased temperature during a short circuit.
- The melted element instantly breaks the circuit, preventing high fault current from reaching sensitive components.
- Any arc formed during the meltdown is extinguished by the silica sand filler inside the fuse body.
Both HRC and semiconductor fuses are used in industrial and commercial settings. They are cartridge-type fuses and use similar arc-quenching materials. However, HRC fuses are slower and are typically used in motors and electricity distribution systems. Semiconductor fuses, on the other hand, are designed for protecting semiconductors in EV systems, IGBTs, diodes, and SCRs. Unlike HRC fuses, semiconductor fuses cannot handle overloads and are specifically designed for short-circuit protection.
Applications of a Semiconductor Fuse
| Application Area | Examples | Purpose of Fuse |
|---|---|---|
| Power Electronics | Rectifiers, Inverters, Choppers, SMPS | Protects diodes, IGBTs, SCRs, MOSFETs from short-circuit damage |
| Automotive | VFDs, DC drives, Motor controllers, Soft starters | Fast protection of semiconductor switching devices |
| Power Backup Sources | UPS systems, Battery energy storage (BESS) | Prevents device failure during sudden faults |
| Renewable Energy Systems | Solar inverters, Wind turbine converters | Protects high-power electronics in renewable and EV systems |
| Industrial Equipment | Welding machines, Rail traction systems, High-power converters | Provides ultra-fast fault clearing for sensitive electronics |
Lawson Fuses, a Trusted Supplier of Semiconductor and Other Types of Fuses
When selecting an industrial fuse supplier, several factors must be considered: product range, certifications, experience, and global presence. Lawson Fuses is one of the few suppliers that ticks all these boxes. With over 85 years of experience, we demonstrate expertise and adaptability to technological advancements. Our product range includes PV fuse-links, semiconductor-type fuse-links, street lighting fuse-links, and more. We specialise in design, development, and manufacturing.
At Lawson Fuses, we offer bespoke fuse solutions tailored to your specific needs. These custom solutions can significantly optimise your operations and provide enhanced protection aligned with your system’s performance.
Wrapping It Up!
A semiconductor fuse operates on the same principle as HRC and other types of fuses. The silver wire melts during a short circuit, breaking the circuit. However, semiconductor fuses stand out due to their rapid response time. Their silver fuse element and notched design allow them to act within milliseconds, making them ideal for protecting sensitive semiconductors.
Fuses—especially semiconductor types—are critical components in industrial, commercial, and residential circuits. They protect expensive equipment and appliances from electrical hazards. That’s why selecting the correct fuse and fuse holder is essential for safe operation.
